Services Config View - Broker/Concentrator General Tab

Services Config View - Broker or Concentrator General TabServices Config View - Broker or Concentrator General Tab

The General tab for a Broker or Concentrator in the Services Config helps manage basic service configuration, configure the aggregate service, and configure the aggregation process between a Broker or Concentrator and the aggregate service.

Configuring the aggregate service (whose data is consumed and aggregated) includes:

  • Adding, editing, and deleting Concentrators and Brokers as aggregate services
  • Toggling an aggregate service online and offline
  • Monitoring statistics for aggregate services
  • Starting and stopping aggregation

Configuring the aggregation process includes setting:

  • Aggregation autostart
  • Timing and performance parameters, such as the number of sessions per round of aggregation and time between rounds
  • The timing of attempts to restart, reconnect, or take offline a non-responsive aggregate service

What do you want to do?What do you want to do?

Related TopicsRelated Topics

General tabGeneral tab

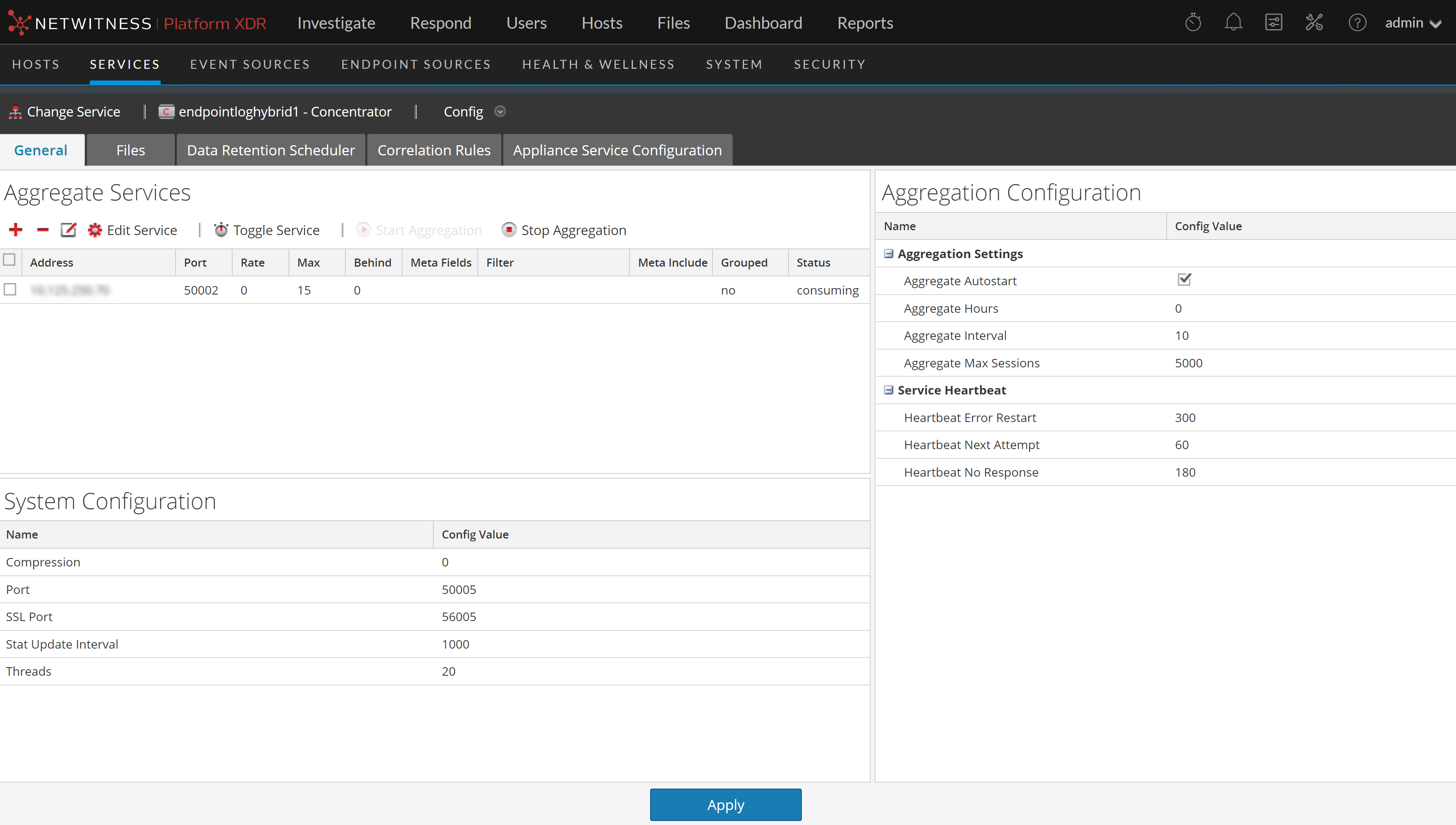

This is an example of the General tab for a Concentrator.


This is an example of the General tab for a Broker.


These are the three major sections in the General tab for Brokers and Concentrators:

  • Aggregate Services
  • System Configuration
  • Aggregation Configuration

Aggregate Services SectionAggregate Services Section

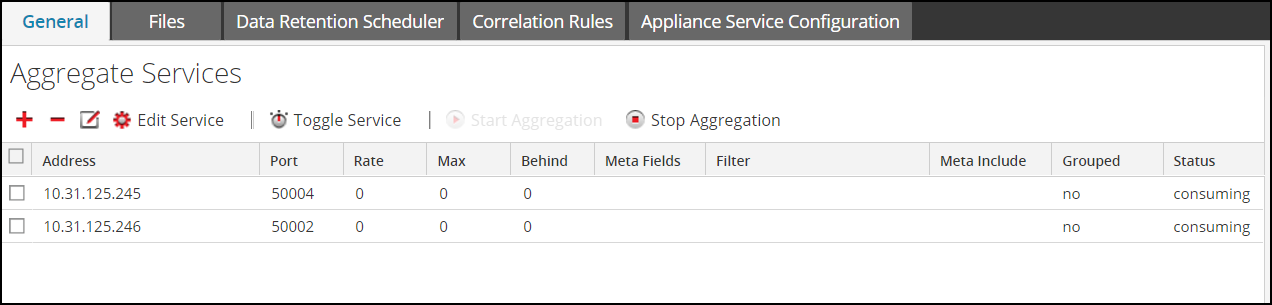

The Aggregate Services section provides a way to start and stop aggregation, as well as add, edit, delete, and toggle an aggregate service. This is an example of the Aggregate Services section for a Concentrator.


The Aggregate Services section toolbar offers these options.

The Aggregate Services section list has these columns.

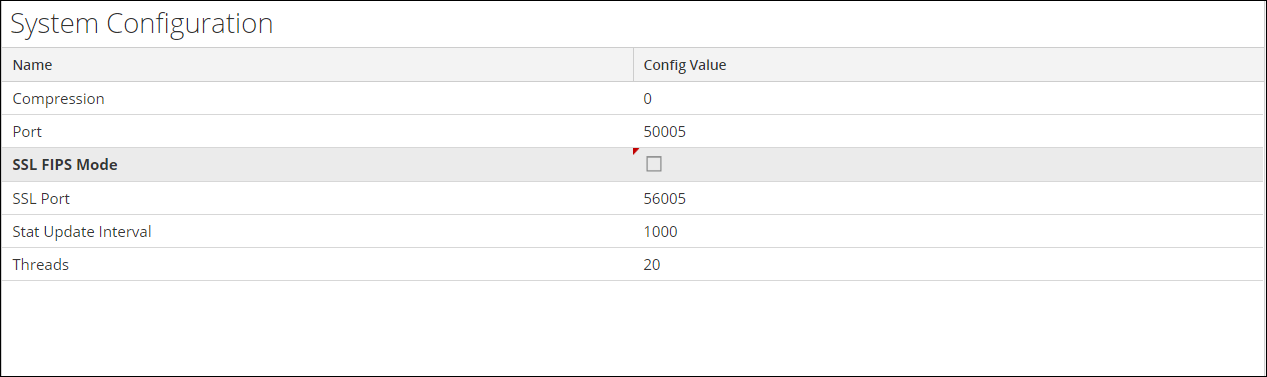

System Configuration SectionSystem Configuration Section

The System Configuration section manages service configuration for a service. When a service is first added, default values are in effect. You can edit these values to tune performance.

The System Configuration section has these parameters.

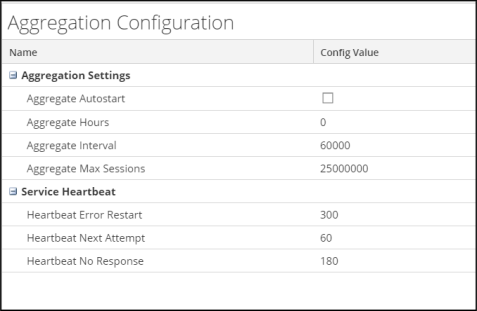

Aggregation Configuration SectionAggregation Configuration Section

The Aggregation Configuration section provides configuration settings that affect various aspects of the aggregation process. When you click Apply, the changes are saved; however, not all settings take effect immediately. The tables for Aggregation Settings and Service Heartbeat provide details.

Caution: Do not change any of these settings unless guided by the Developers or the Customer Support team. Contact the Customer Support for any questions before editing any of these settings.


The following table describes the aggregation settings

Service HeartbeatService Heartbeat

In communicating with each aggregate service, Brokers and Concentrators monitor the heartbeat of the service. These parameters specify the timing of the first attempt to reconnect to a service after an error, the next attempt to reconnect, and taking the service offline after failure to reconnect.

When editing parameters in the General tab, you must click Apply to save changes.
