Appendix E - Sample Scenario for Extending SASE Concentrator Storage

This sample scenario describes the Storage extension for concentrator configured with c1r12m60 model. The supported extension models are c1r6m30, c1r12m60 and c1r23m120.

Follow these steps to extend storage for Concentrator:

  1. SSH into node-z (Admin Server). Identify the new model and update model_name and additional_storage values in /root/.sase/sase-deployment-models.yml and save the changes.

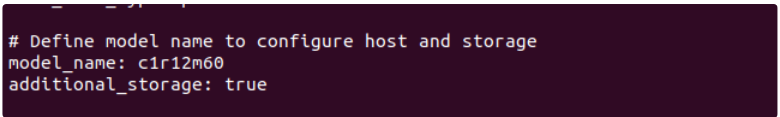

    The below screen shot shows an example configuration updated with extended storage model_name: c1r12m60, additional_storage: true . If the additional_storage is not set to true, additional storage is not created even though the model_name is updated.

    The below screen shot shows the updated storage configuration in /root/.sase/sase-deployment-models.yml: model_name: c1r12m60, additional_storage: true. Additional storage disks are created for the updated model_name only when additional_storage is set to true.


  2. Run the nw-create-cloud-hybrid script on node-z.


  3. Login to SA UI. To list the all the block devices, Navigate to Hosts -> Select the current Host (concentrator node) -> Services -> Actions -> View -> Explore -> deviceappliance -> appliance -> Right Click -> Properties drop-down -> Select devlist -> Click Send.

    • The new disks corresponding to ‘used=0’ indicate that these disks are not configured.

    • During storage extension, all existing configuration is preserved.

  4. Repeat steps 2 through 7 from Appendix C - Sample Scenario for Configuring SASE Concentrator Storage section to complete configuration of the unused (used=0) block devices.
