Information on how to direct the Log Decoder to use a specific device parser when collecting logs from a given event source in RSA NetWitness Platform

Issue

This article provides supplemental information and directions on how to direct an RSA NetWitness Platform log decoder device to use a specific device parser during log collection.

Resolution

Follow these directions to configure a specific device parser when collecting logs from a given event source.  These steps are conducted in the Security Analytics UI as an administrator.

1. Go to Explore view of the Log Decoder service.
   • For 10.6.x, Administration -> Services -> <Log Decoder> -> View  -> Explore
   • For 11.x,  Admin -> Services -> <Log Decoder > -> View  -> Explore
2. Navigate to Decoder -> Parsers.
3. Right-click Parsers and select Properties.
4. From the drop-down, select ipdevice.
5. In the parameters field, enter the following: op=edit entries=+ =


6. Then type the following to confirm the entry: op=describe



Now the event source with that IP address will be forced to use the specified parser.

If you are unsure of any of the steps above or experience any issues, contact RSA Support and quote this article number for further assistance.

Notes

The device to parser mapping file is found on the following directories on the Log Decoder appliance:
For 10.6.x:   /etc/netwitness/ng/envision/etc/devicetbl.xml
For 11.x:  /etc/netwitness/ng/envision/etc/devicetbl.csv

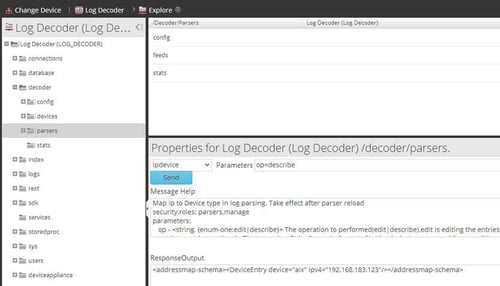

The output of the file appears similar to the example below.

Product Details

RSA Product Set: RSA NetWitness Platform
RSA Product/Service Type: Log Decoder, User Interface (UI)
RSA Version/Condition: 10.6.x, 11.x

Summary

This article details how to direct an RSA NetWitness Platform log decoder device to use a specific device parser during log collection.
