Jetty not starting after importing a custom certificate in RSA Security Analytics 10.6.1.0

Issue

Jetty crashes and the UI is not available after the customer imports a custom certificate as per https://community.rsa.com/docs/DOC-56684 (https://sadocs.emc.com/0_en-us/088_SA106/200_SecUsrMgt/25_SetPublicKey/10_CfgPKI/20_ImprtCert)

If during the import they didn't check the box "Import CAs", as per the document above, the Trusted CAs section in Administration > Security > PKI Settings will not populate.
After next run of puppet agent and the restart of jettysrv it will start to crash but no relevant error is visible in sa.log.

In sa.log you may see errors similar to this one:

Cause

See SACE-6862

It appears this could happen when the customer does not check the box to import the CAs.

Resolution

First try resetting jetty-ssl.xml as per KBA 000030477.

Try also what was suggested in case 00865420 and SACE-6862:

• stop jettysrv
• move /opt/rsa/carlos/keystore to another location
• replace again jetty-ssl.xml in /opt/rsa/jetty9/etc/ and /etc/puppet/modules/saserver/files/ with the default copy of the file
• restart jettysrv

If this does not work, diff the default jetty-ssl.xml that was copied on the appliance with the file in /opt/rsa/jetty9/etc/ and /etc/puppet/modules/saserver/files/.
Assuming you have a copy of the default jetty-ssl.xml in /tmp, the following command should show you that the files differ:

At this point puppet is trying to put back in place the keystore in jetty-ssl.xml, which is what causes the crash of jettysrv.

Try the following procedure, assuming you have a copy of the default jetty-ssl.xml in /tmp:

This should be enough to have the UI back. Go to Administration > Security > PKI Settings.
Confirm if the Trusted CAs section is not populated.
The entry in Server Certificates should now show in red.

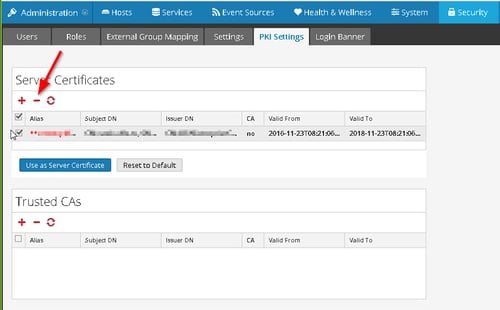

Delete the custom certificate from Server Certificates.



Make the jetty-ssl.xml files writable again and then run puppet agent:

This should restart jetty and fix all the issues with the custom certificate.
We should be back to a stable condition where jettysrv does not crash and uses the self-signed certificate, and no custom certificate is configured in the UI.

Bonus point, if the customer is still willing to import their certificate explain that they need to perform step 6 as per https://community.rsa.com/docs/DOC-56684 (https://sadocs.emc.com/0_en-us/088_SA106/200_SecUsrMgt/25_SetPublicKey/10_CfgPKI/20_ImprtCert):

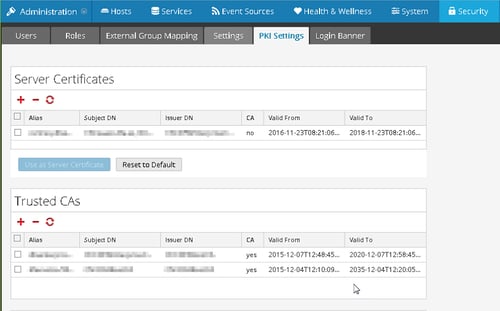

Further to this import you should see custom cert in Server Certificate and the Trusted CAs populated.



Select the custom certificate, click on "User as Server Certificate".
Run manually puppet agent -t.
This should restart jettysrv and after that the new (custom) certificate will be used.

NOTE:
You may need to clear the browser cache and restart the browser or open the UI in an incognito session in the browser to see the new (custom) certificate.
