NetWitness Log Collector Microsoft AzureNSG event source test connection failing with AuthorizationFailure error

Issue

Microsoft AzureNSG event source configuration configured using Microsoft Azure NSG & NetWitness Integration.
But the test connection fails with the below error in UI.

 failed to connect to device/service: This request is not authorized to perform this operation. ErrorCode: AuthorizationFailure

<?xml version="1.0" encoding="utf-8"?><Error><Code>
 AuthorizationFailure</Code><Message>This request is not authorized to perform this operation.

RequestId:f6853f8c-f45e-0009-45cc-e5670c000000

Time:2021-11-30T09:30:32.3285803Z</Message></Error>

Cause

This issue is due to Azure storage account access being restricted to the Selected Networks option.

Resolution

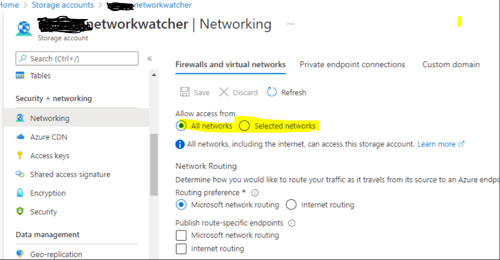

Please work with the Azure team to allow All networks to access storage account using the below settings.

If Selected Networks to be chosen, then the Netwitness Log collector is running on Azure and is in the same subnet then it may work. But, If it is on-prem then the collector ip which is an internal ip, then the ip that is seen by azure would be the ip of the gateway for selected networks. The customer network team will be able to give the details to choose selected networks.

Product Details

RSA Product Set: RSA NetWitness Logs & Network
RSA Product/Service Type: Core Appliance
RSA Version/Condition: 11.5.1.0
Platform: CentOS
O/S Version: 7

Summary

This document outlines the procedure to collect logs from Microsoft AzureNSG event source.
