NetWitness Services Keystores corruption

Issue

Symptoms:
  • NetWitness GUI is not accessible
  • From /var/netwitness/uax/logs/sa.log, you can see error "Request to admin-server.any./rsa/process/ready timed out"
at java.base/java.lang.Thread.run(Thread.java:834)
[taskScheduler-5] ERROR com.netwitness.platform.server.common.atmosphere.WebSocketSessionExpiry - Error retrieving idle session timeout settings from admin-server
com.rsa.asoc.launch.api.transport.client.RequestTimeoutException: Request to admin-server.any./rsa/process/ready timed out
at com.rsa.asoc.launch.api.transport.client.AmqpTransportClientHelper.requestTimeoutException(AmqpTransportClientHelper.java:51)
at com.rsa.asoc.launch.api.transport.client.AmqpTransportClientHelper.throwRequestTimeoutException(AmqpTransportClientHelper.java:44)
at com.rsa.asoc.launch.api.transport.client.AmqpTransportClient.doSendAndReceive(AmqpTransportClient.java:115)
at com.rsa.asoc.launch.api.transport.client.AmqpTransportClient.send(AmqpTransportClient.java:69)
at com.rsa.asoc.launch.api.transport.client.TransportClientInvocationHandler.makeRemoteCall(TransportClientInvocationHandler.java:68)
at com.rsa.asoc.launch.api.transport.client.TransportClientInvocationHandler.invoke(TransportClientInvocationHandler.java:50)
  • From /var/log/netwitness/admin-server/admin-server.log, we can see that the certificate is untrusted.
[ main] WARN Security|Certificate for CN=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxxx,OU=NetWitness Platform,O=RSA,L=Reston,ST=VA,C=US issued by CN=Puppet CA: xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxxx is not trusted
  • Security-cli-client command (#security-cli-client -p) giving the below error :
    Service [config-server] not ready (polling 49 more times)
  • Upgrade failing with the following Error :
FATAL: Mixlib::ShellOut::ShellCommandFailed: nw_pki_openssl_hashed_cert[download trustpeer certs for nw-appliance] (nw-appliance::trusts line 10) had an error: Mixlib::ShellOut::ShellCommandFailed: execute[launch-peer-cert:sa-server] (/var/lib/netwitness/config-management/cache/cookbooks/nw-pki/resources/openssl_hashed_cert.rb line 54) had an error: Mixlib::ShellOut::ShellCommandFailed: Command execution failed. STDOUT/STDERR suppressed for sensitive resource
  • Find the below errors in the Launch services log files (e.g: /var/log/netwitness/admin-server/admin-server.log, /var/log/netwitness/orchestration-server/orchestration-server.log, /var/log/netwitness/node-infra-server/node-infra-server.log, etc….), while CA and services certificates are not expired
[ main] WARN Security|Certificate for CN=xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxxx,OU=NetWitness Platform,O=RSA,L=Reston,ST=VA,C=US issued by CN=Puppet CA: xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxxx is not trusted
ERROR CONFIGURATION|call-home failed
org.springframework.amqp.AmqpIOException: javax.net.ssl.SSLException: Fatal Alert received: Bad Certificate
[MessageListenerContainer-17593] ERROR c.r.a.l.e.t.LaunchMessageListenerContainer|Failed to check/redeclare auto-delete queue(s). org.springframwork.amqp.AmqpIOException: javax.net.ssl.SSLException: Fatal Alert received: {48}
  • Also, you can find in /var/log/messages
    nwlaunchstatreader.py: Error! Exchange [admin-server] not available for [admin-server.488ce8a3-6fd1-4215-a5c1-68c1b93eb9d0.] Exception: [(404, "NOT_FOUND - no exchange 'admin-server' in vhost '/rsa/system’")]
    nwlaunchstatreader.py: Error! Exchange [config-server] not available for [config-server.0d6f669b-2693-4494-bb02-6af065c1ed26.] Exception: [(404, "NOT_FOUND - no exchange 'config-server' in vhost '/rsa/system'")]

Workaround

Note: You can change the Service Name and Service Directory according to which service has the corrupted keystore.

If the errors happened during/after an upgrade, use the last known working keystore (keystore.p12.good.new) to fix the keystore:
  1. SSH into the Admin server.
  2. Stop rsa-nw-admin-server service:
    systemctl stop rsa-nw-admin-server
  3. Change directory to admin-server:
    cd /etc/netwitness/admin-server
  4. Backup existing keystore file:
    mv keystore.p12  keystore.p12.backup
  5. Replace keystore.p12 with the last known working keystore.p12.good.new:
    cp keystore.p12.good.new  keystore.p12
  6. Set permissions and ownership to keystore.p12:
    chmod 640 keystore.p12
    chown netwitness:netwitness keystore.p12
  7. Start rsa-nw-admin-server service:
    systemctl start rsa-nw-admin-server.service
  8. Restart the web application server service jetty:
    systemctl restart jetty

If the issue was not resolved or these errors are found before the upgrade was initiated, try to fix/reconstruct the keystore of the services through "nw-shell":
  1. SSH into the Admin server.
  2. Enter "nw-shell" by running the command:
nw-shell

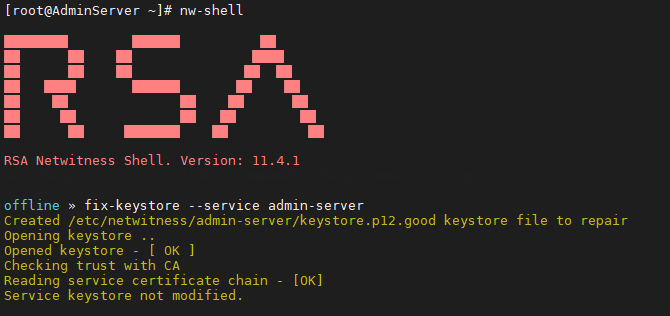

  1. Run fix-keystore command for the service that has the corrupted keystore (e.g: admin-server)
fix-keystore --service admin-server
  1. The repaired keystore can be found with the suffix .good (keystore.p12.good)
  1. Stop rsa-nw-admin-server service:
    systemctl stop rsa-nw-admin-server
  2. Change directory to admin-server:
    cd /etc/netwitness/admin-server
  3. Backup the existing keystore file:
    mv keystore.p12  keystore.p12.backup
  4. Replace keystore.p12 with keystore.p12.good:
    cp keystore.p12.good  keystore.p12
  5. Set permissions and ownership to keystore.p12:
    chmod 640 keystore.p12
    chown netwitness:netwitness keystore.p12
  6. Start rsa-nw-admin-server service:
    systemctl start rsa-nw-admin-server.service

If the issue still is not resolved after fixing the keystore from "nw-shell", try reconstructing the keystore:
  1. SSH into the Admin server.
  2. Enter "nw-shell" by running the command:
nw-shell
  1. Run reconstruct-keystore command for the service that has the corrupted keystore (e.g: admin-server)
reconstruct-keystore --service admin-server
  1. The reconstructed keystore can be found with the suffix .good (keystore.p12.good)
NetWitness Services Keystores corruption
  1. Stop rsa-nw-admin-server service:
    systemctl stop rsa-nw-admin-server
  2. Change directory to admin-server:
    cd /etc/netwitness/admin-server
  3. Backup existing keystore file:
    mv keystore.p12  keystore.p12.backup
  4. Replace keystore.p12 with keystore.p12.new:
    cp keystore.p12.new  keystore.p12
  5. Set permissions and ownership to keystore.p12:
    chmod 640 keystore.p12
    chown netwitness:netwitness keystore.p12
  6. Start rsa-nw-admin-server service:
    systemctl start rsa-nw-admin-server.service


Resolution



Product Details

NetWitness Product Set: RSA NetWitness Platform
NetWitness Product/Service Type: Core Appliance
NetWitnessVersion/Condition: 11.x, 12.x
O/S Version : EL7
