SASE Node(s) Backup and Restore using GCP Snapshots

Tags: Documentation

NetWitness provides backup/restore of SASE node(s) in GCP that follows the same process as on-prem node(s). GCP provides a snapshot feature to backup GCP instances periodically and restore them in case of node destruction or failure.

SASE Node-X backup and restore uses Google snapshots.

Refer to Snapshots overview | Filestore | Google Cloud for more details on snapshots.

Note: Snapshots are taken only for VM boot disk instances and not configured for storage disks (For example, disks defined in host-models.yml configured for NW databases such as packetdb/index).

Perform the following tasks to backup/restore the SASE node(s):

Task 1. Create Snapshot of Orchestrated SASE Node-X

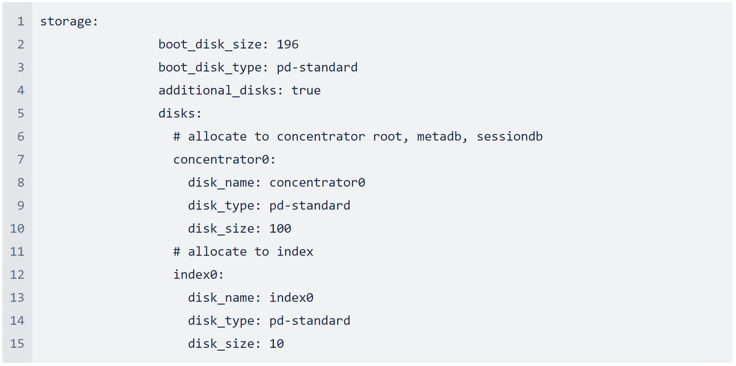

During the orchestration of SASE Node-X, if the storage is set to true under the Storage section of /opt/rsa/saTools/cloud/sase-deployment-models.yml, additional disks are created with the specifications defined under the Storage section. These disks are configured as storage devices for the orchestrated Node-X service. Currently, both the Decoder and Concentrator are supported. The snippet below describes the creation of two disks, concentrator0 and index0, with disk type and size.

1251_Creation

Follow the below steps to create snapshot of orchestrated SASE Node-X:

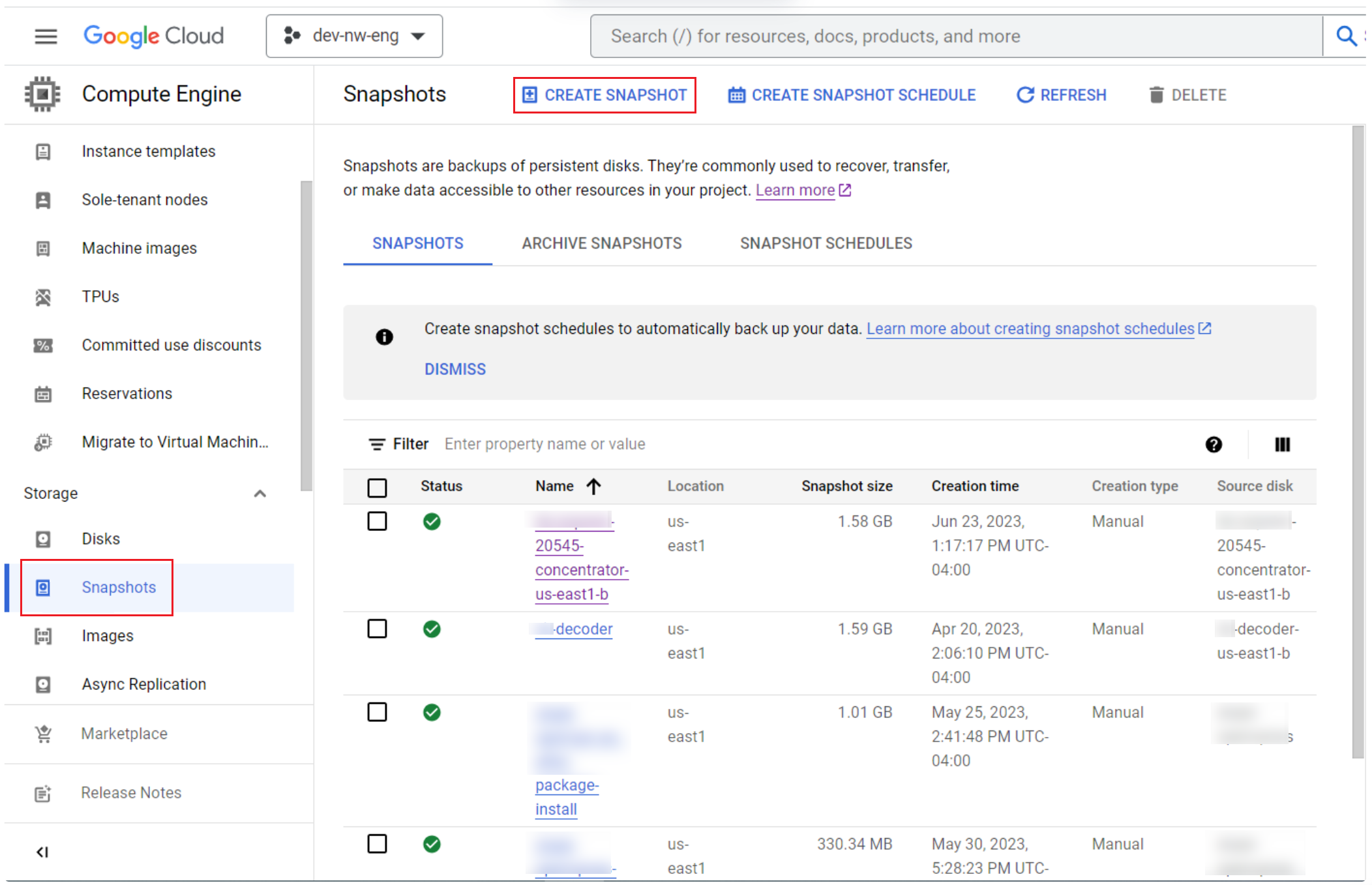

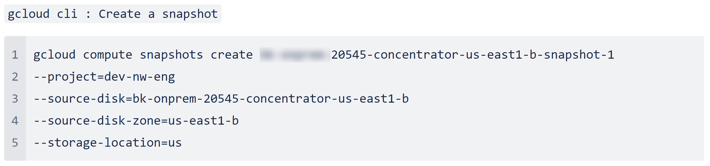

  1. Login to the GCP account, select Snapshots > CREATE SNAPSHOT.

    1251_GCP

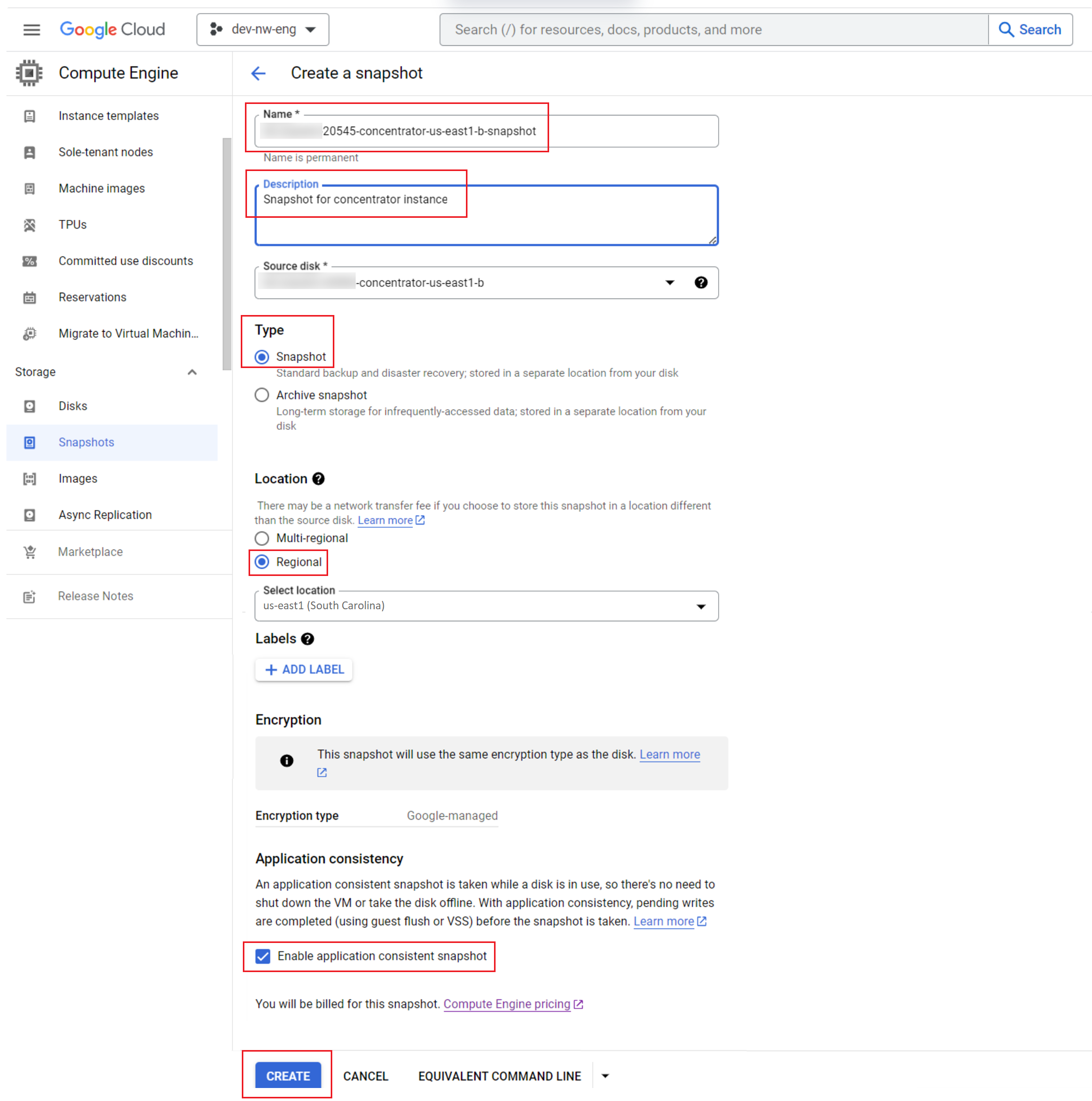

  2. Fill in all the mandatory fields such as Name (For example, VM name + snapshot i.e., 20545-concentrator-us-east1-b-snapshot, Type (Snapshot), Location - Regional (Same as the VM instance location. In this case: us-east-1), select Enable application consistent snapshot checkbox and click Create to create the snapshot.

    1251_Fill

    1251_Create

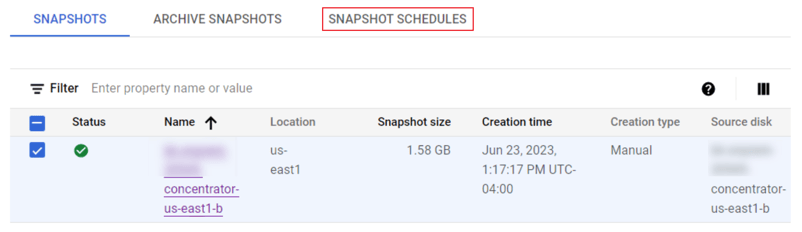

  3. The new snapshot is displayed in the snapshot window.

    1251_Snapshot

Task 2. Create Snapshot Schedule for Orchestrated SASE Node-X

Refer to Create schedules for disk snapshots | Compute Engine Documentation | Google Cloud for more details.

Follow the below steps to create snapshot schedule for orchestrated SASE Node-X:

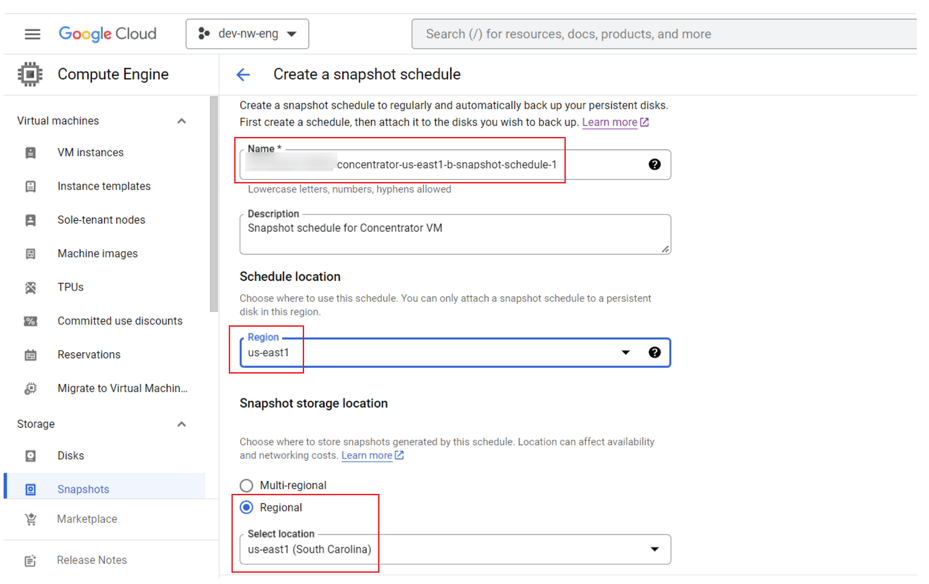

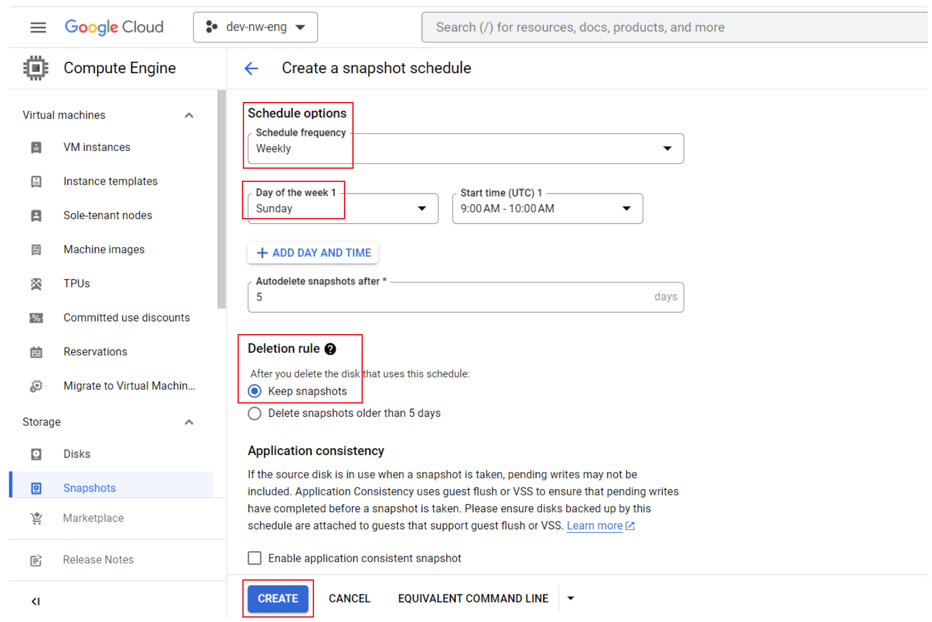

  1. Select the SNAPSHOT SCHEDULES tab to create snapshot schedules for this instance.

    1251_Create

    1251_Create

    1251_Create

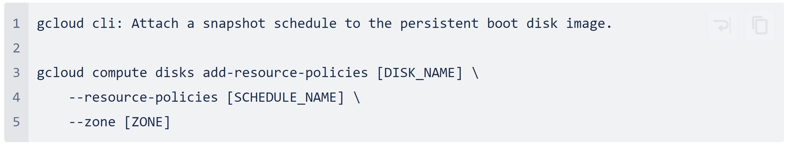

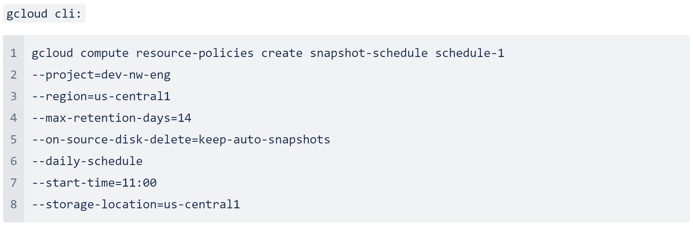

  2. Refer to the link Create schedules for disk snapshots | Compute Engine Documentation | Google Cloud.

    1251_Create

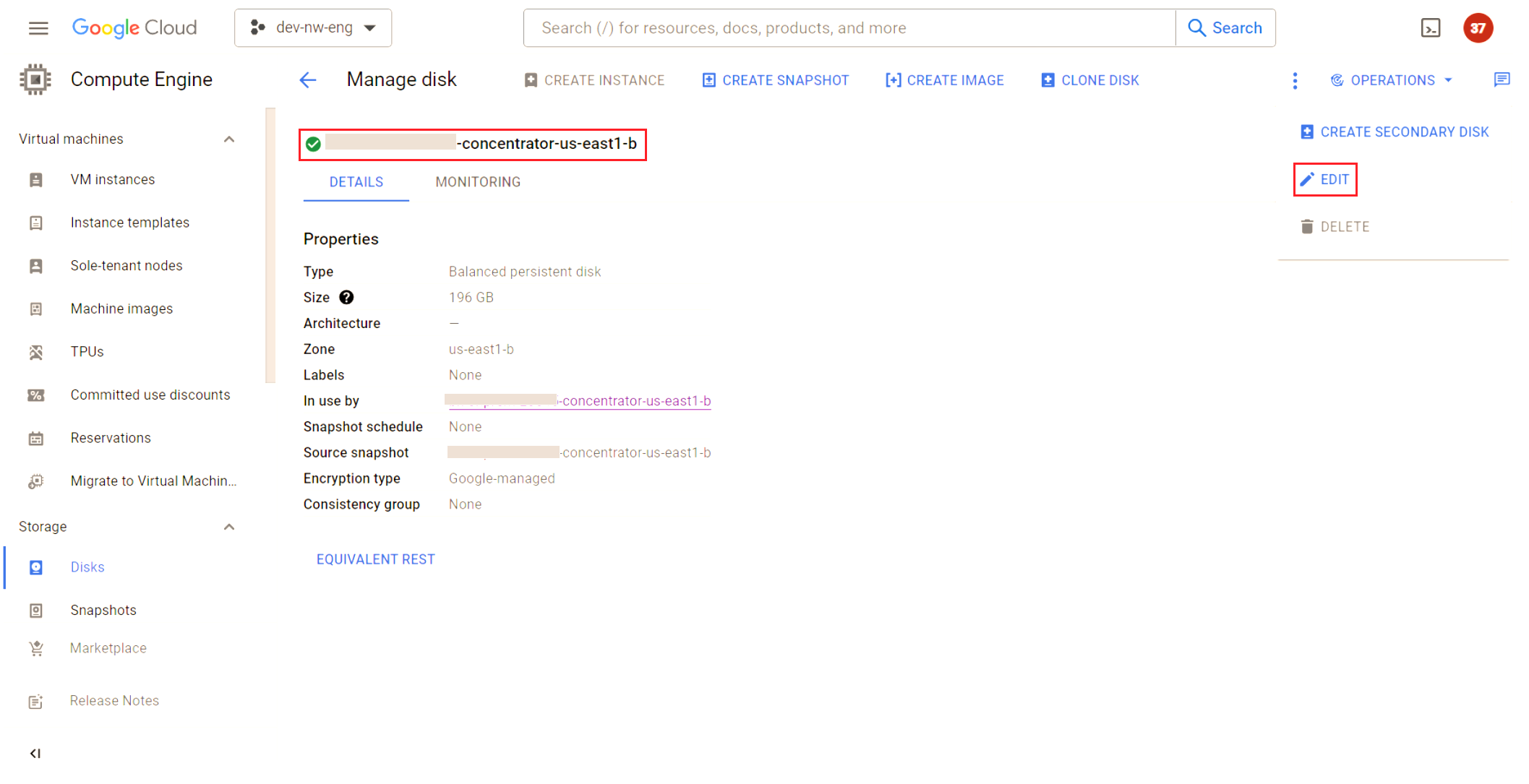

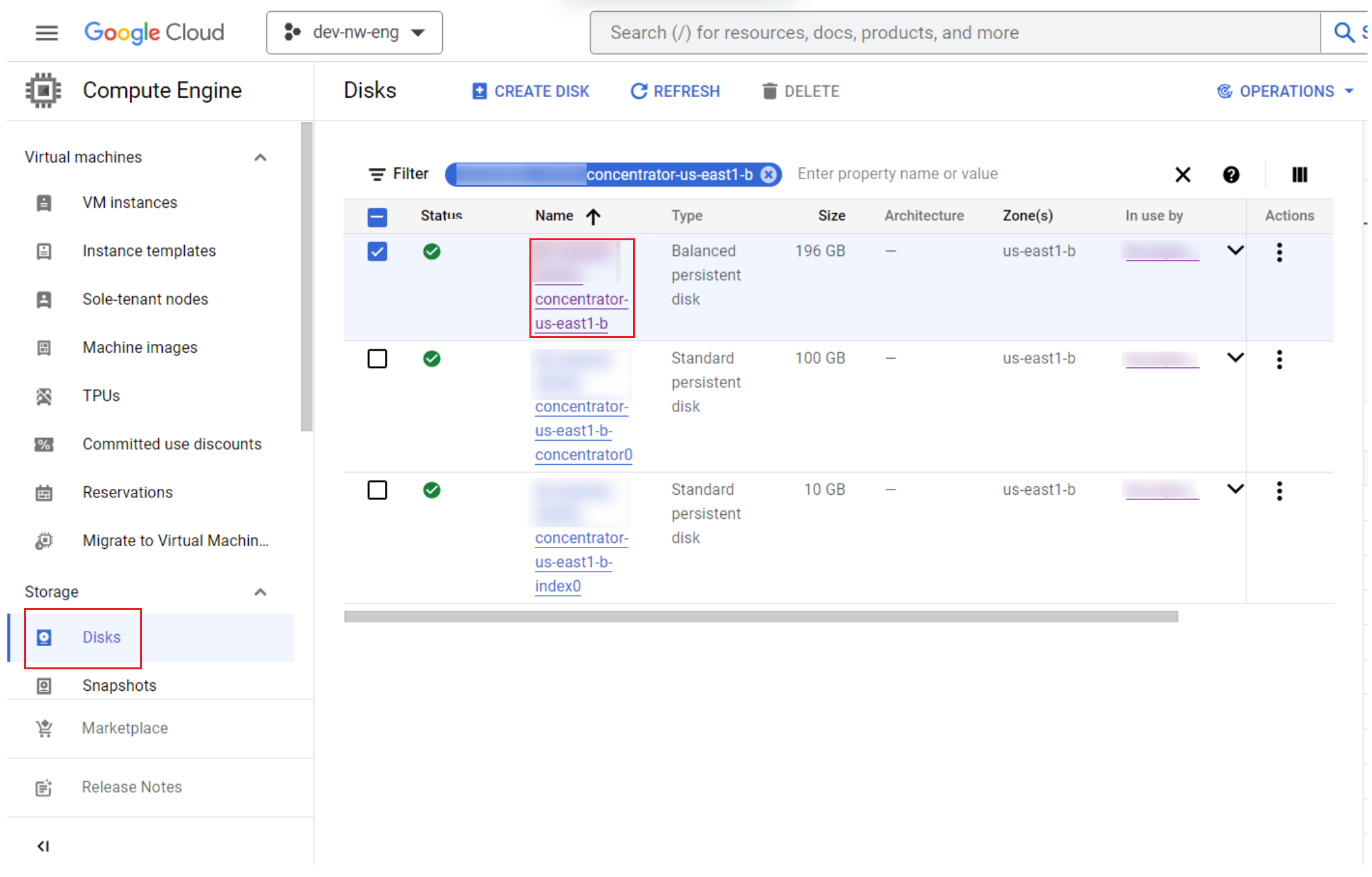

    Click on the Name to select the disk. Click Edit to change the properties.

    1251_Create

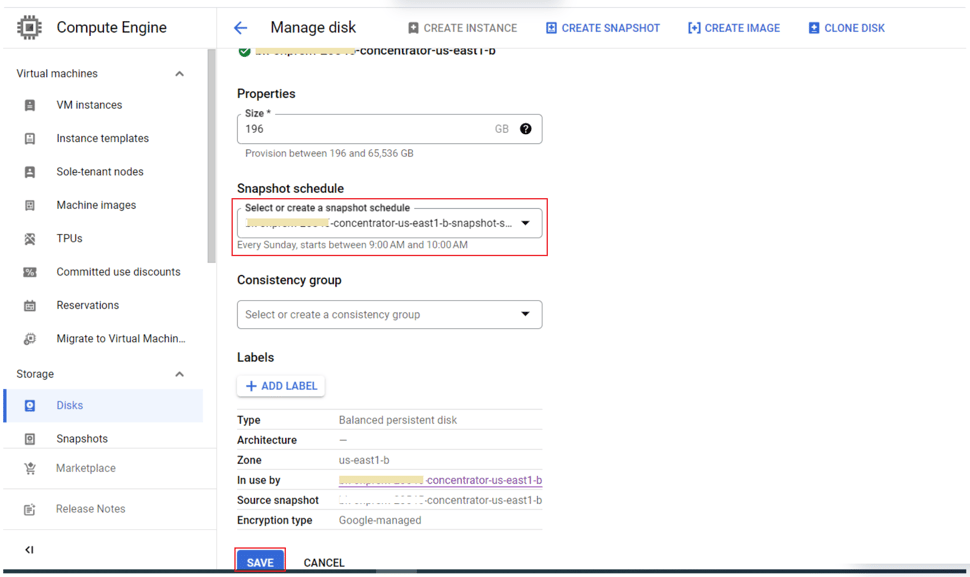

  3. Select the Snapshot schedule from the drop-down. This is the schedule created in the previous step. The selected schedule details are described below the snapshot drop-down. Click Save.

    1251_Create

    1251_Create

Task 3. Restore SASE Node-X (For example, concentrator or decoder) from Snapshot

  1. Identify the snapshot corresponding to the image that needs restoration.

  2. Note the failed Node-X Name and Network settings (gcp - IP, Subnet, and gateway). The new image MUST have the same name and IP settings as the failed node. The name/ip address are added to /etc/hosts of all the nodes in the NW environment. Fixed static IP assignment is an option.

  3. Attach the Storage disks of the failed instance to the new instance restored from a snapshot. When restoring an image from a snapshot, the /etc/fstab is restored and contains the mounts for the Storage disks. These disks MUST be attached before the NW server (For example, concentrator or decoder) is booted.

  4. SSH to the new instance and confirm that the service is running. Next, log in to the Admin server UI and confirm that the service on the new instance is online.

Original Settings

[root@20545-concentrator-us-east1-b ~]# ip a

1: lo: mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000

link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00

inet 127.0.0.1/8 scope host lo

valid_lft forever preferred_lft forever

inet6 ::1/128 scope host

valid_lft forever preferred_lft forever

2: eth0: mtu 1460 qdisc mq state UP group default qlen 1000

link/ether 42:01:0a:0a:14:08 brd ff:ff:ff:ff:ff:ff

inet 10.10.20.8/32 brd 10.10.20.8 scope global dynamic eth0

valid_lft 2686sec preferred_lft 2686sec

inet6 fe80::4001:aff:fe0a:1408/64 scope link

valid_lft forever preferred_lft forever

3: nebula1: mtu 1300 qdisc pfifo_fast state UNKNOWN group default qlen 500

link/none

inet 172.30.30.4/24 scope global nebula1

valid_lft forever preferred_lft forever

inet6 fe80::e337:8b00:d411:132a/64 scope link flags 800

valid_lft forever preferred_lft forever

[root@20545-concentrator-us-east1-b ~]# cat /etc/fstab

#

# /etc/fstab

# Created by anaconda on Tue May 23 18:49:10 2023

#

# Accessible filesystems, by reference, are maintained under '/dev/disk'

# See man pages fstab(5), findfs(8), mount(8) and/or blkid(8) for more info

#

/dev/mapper/netwitness_vg00-root / xfs defaults 0 0

UUID=7e02d023-b265-4f18-9f4f-3aecf28681bf /boot xfs defaults 0 0

/dev/mapper/netwitness_vg00-usrhome /home xfs nosuid 0 0

/dev/mapper/netwitness_vg00-varlog /var/log xfs defaults 0 0

/dev/mapper/netwitness_vg00-nwhome /var/netwitness xfs nosuid,noatime 0 0

/dev/mapper/netwitness_vg00-swap swap swap defaults 0 0

/dev/concentrator/root /var/netwitness/concentrator xfs noatime,nosuid 1 2

/dev/concentrator/sessiondb /var/netwitness/concentrator/sessiondb xfs noatime,nosuid 1 2

/dev/concentrator/metadb /var/netwitness/concentrator/metadb xfs noatime,nosuid 1 2

/dev/index/index /var/netwitness/concentrator/index xfs noatime,nosuid 1 2

[root@20545-concentrator-us-east1-b ~]#

Detailed Steps

Step 1. Create a GCP VM instance from the snapshot with the same name and specifications

gcloud compute instances create 20545-concentrator1-us-east1-b

--project=dev-nw-eng

--zone=us-east1-b

--machine-type=n2-standard-4

--network-interface=network-tier=PREMIUM,stack-type=IPV4_ONLY,subnet=20545-ppn-node-subnetwork-us-east1

--maintenance-policy=MIGRATE

--provisioning-model=STANDARD

--service-account=97611879986-compute@developer.gserviceaccount.com

--scopes=https://www.googleapis.com/auth/devstorage.read_only,https://www.googleapis.com/auth/logging.write,https://www.googleapis.com/auth/monitoring.write,https://www.googleapis.com/auth/servicecontrol,https://www.googleapis.com/auth/service.management.readonly,https://www.googleapis.com/auth/trace.append

--create-disk=auto-delete=yes,boot=yes,device-name=20545-concentrator1-us-east1-b,disk-resource-policy=projects/dev-nw-eng/regions/us-east1/resourcePolicies/20545-concentrator-us-east1-b-snapshot-schedule-1,mode=rw,size=196,source-snapshot=projects/dev-nw-eng/global/snapshots/20545-concentrator-us-east1-b,type=projects/dev-nw-eng/zones/us-east1-b/diskTypes/pd-balanced

--labels=goog-ec-src=vm_add-gcloud

--reservation-affinity=any

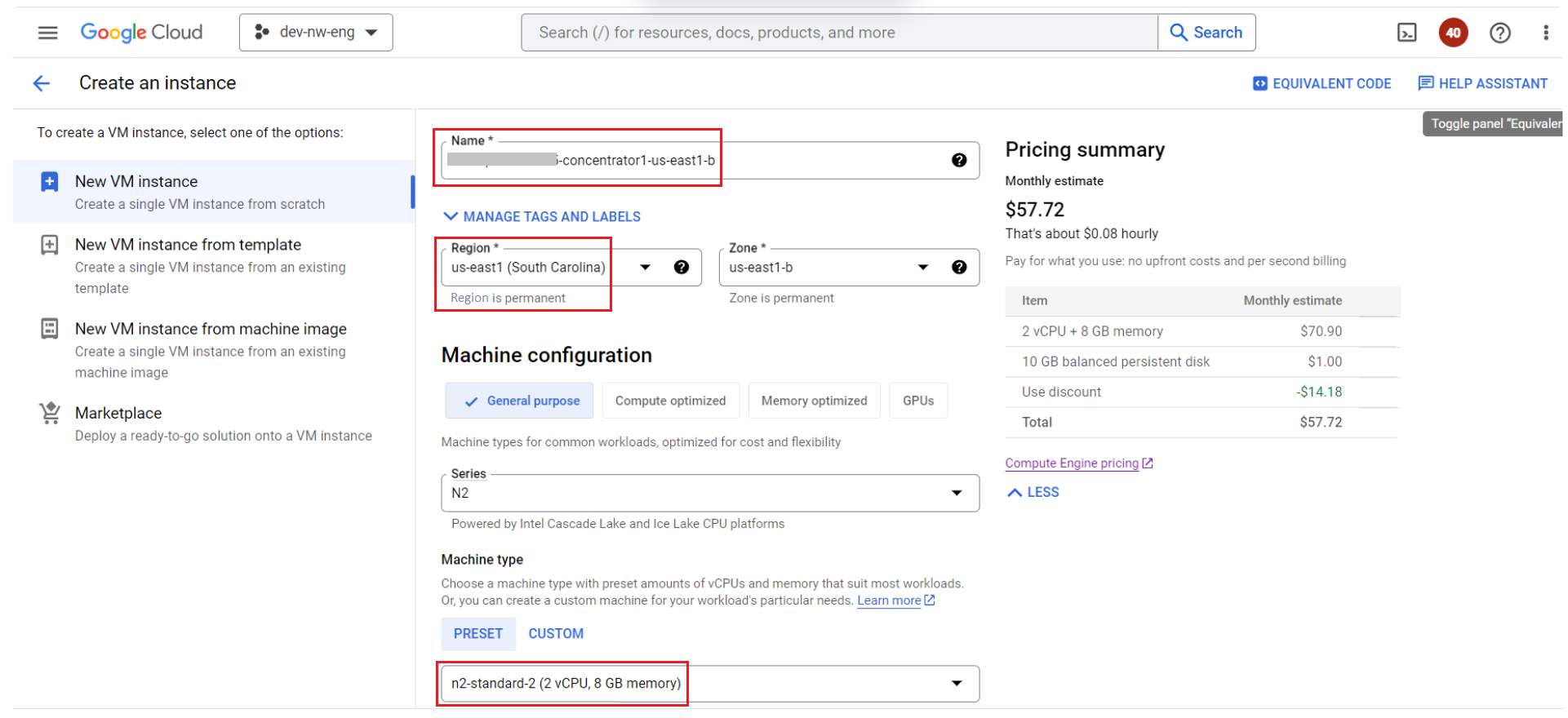

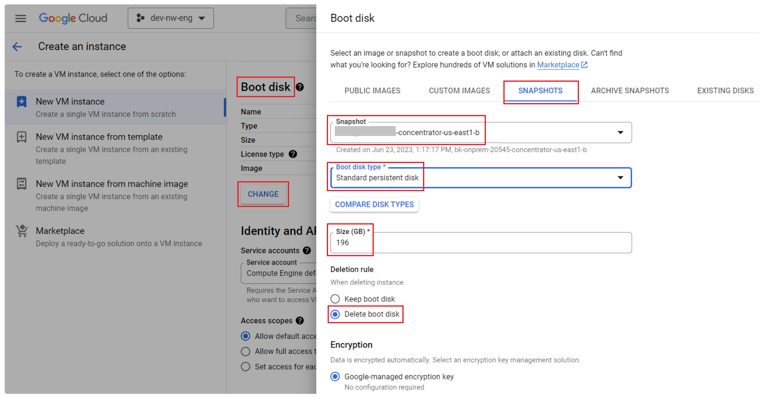

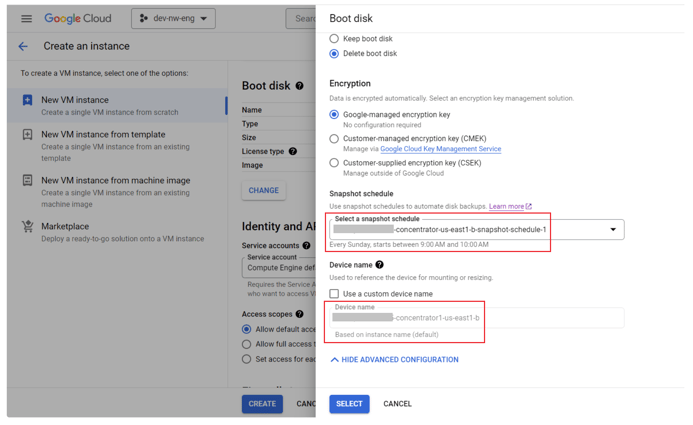

Step 2. Create a VM instance from the snapshot

1251_Create

1251_Create

1251_Create

Step 3. Configure Networking

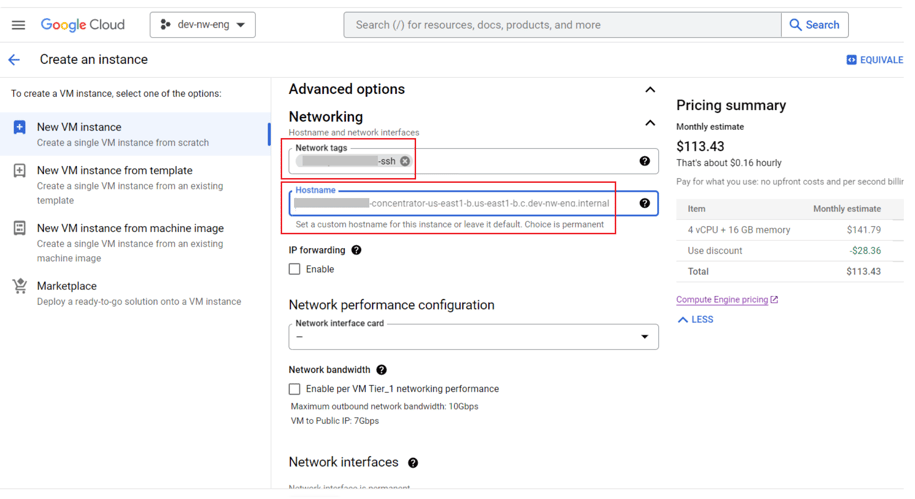

  1. Select Advanced Options > Networking > Select the required Network Tags. Retain the default value for HostName.

    1251_NetWorking_Network

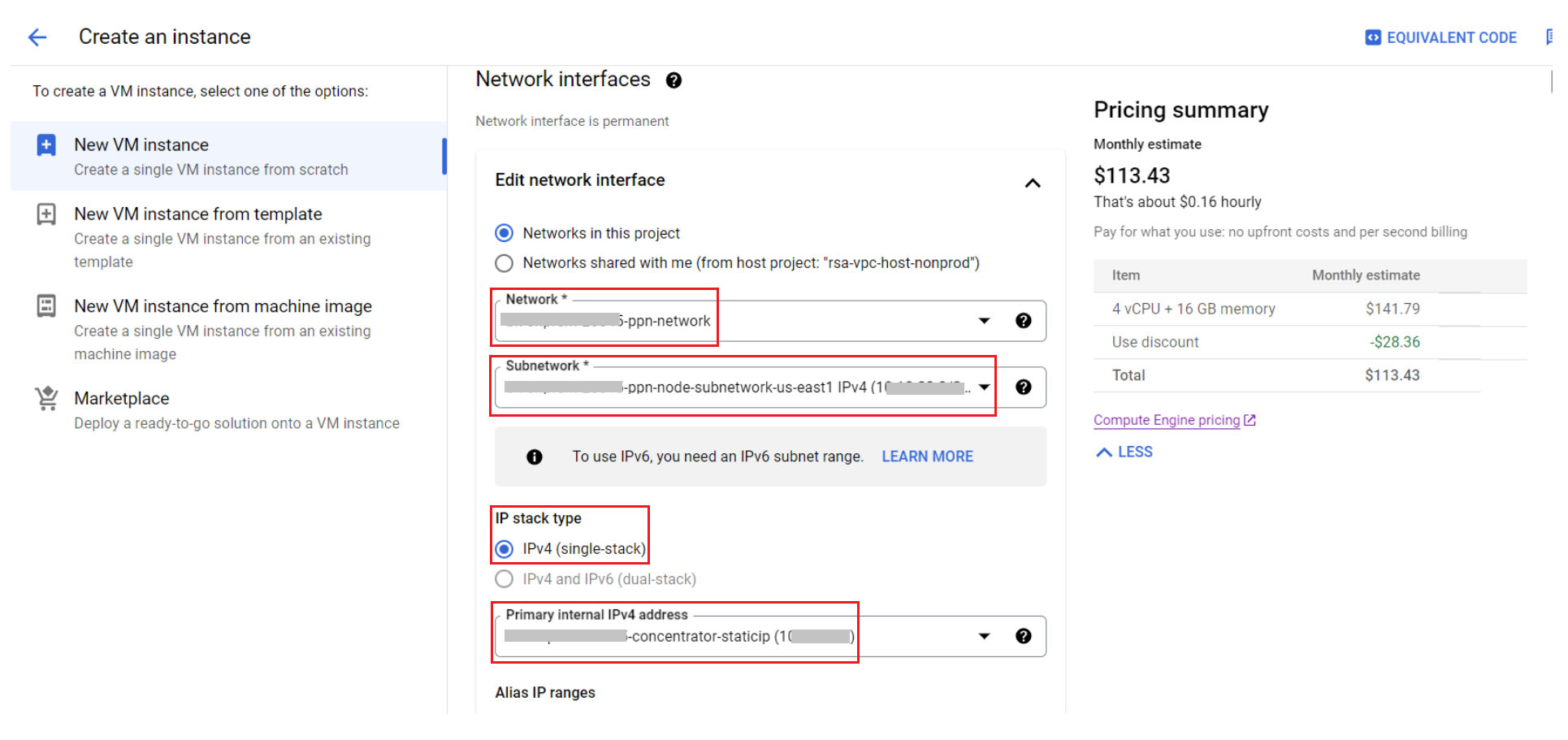

  2. Select Network Interfaces > Edit network interface > Networks in this project.

  3. Select the appropriate Network and Subnetwork from the drop-down.

    1251_NetWorking_Network

  4. Select IPv4 (single-stack) and Primary Internal IPv4 Address from the drop-down.

    Note: This address MUST match the IPv4 address of the failed node being replaced.

Reserving Static Internal IPv4 Address

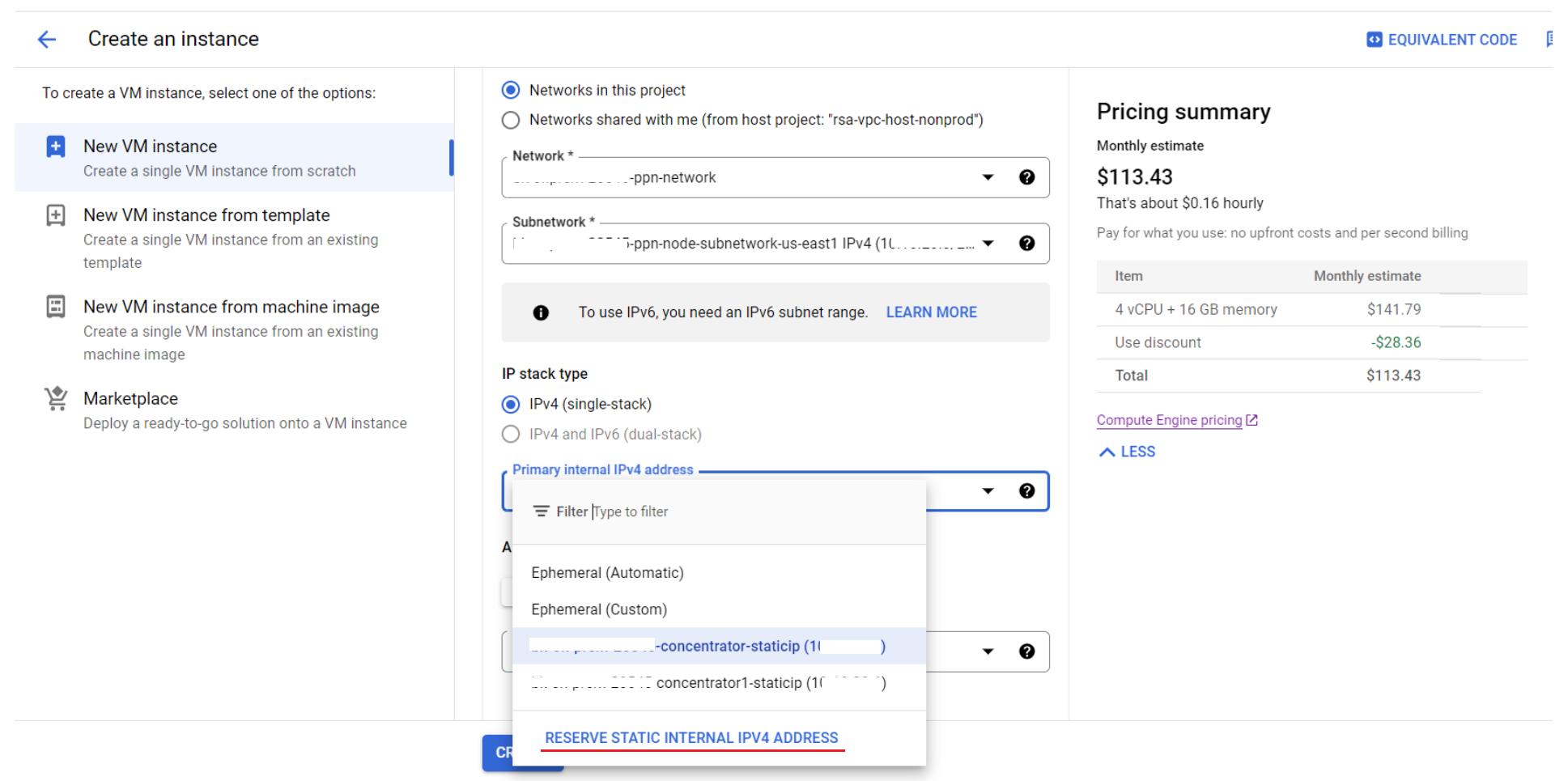

Select the Primary internal IPv4 address drop-down and select RESERVE STATIC INTERNAL IPV4 ADDRESS.

Configure static internal IP addresses | Compute Engine Documentation | Google Cloud

terra form: Configure static internal IP addresses | Compute Engine Documentation | Google Cloud

gcloud cli:


1251_Reserving

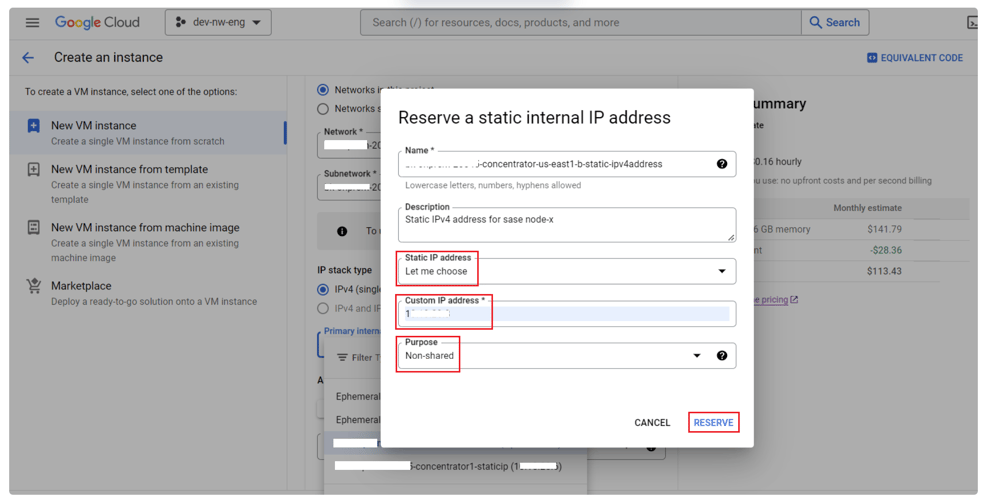

Enter the below details and click Reserve:

Name - lower case text to reflect the VM instance Name IPv4 address. For example: 20545-concentrator-us-east1-b-ipv4address

Static IP address - Let me choose

Custom IP address - IPv4 address in the cloud_node_subnet defined in /opt/rsa/saTools/cloud/sase-deployment-models.yml.

Purpose - Non Shared

1251_Reserve

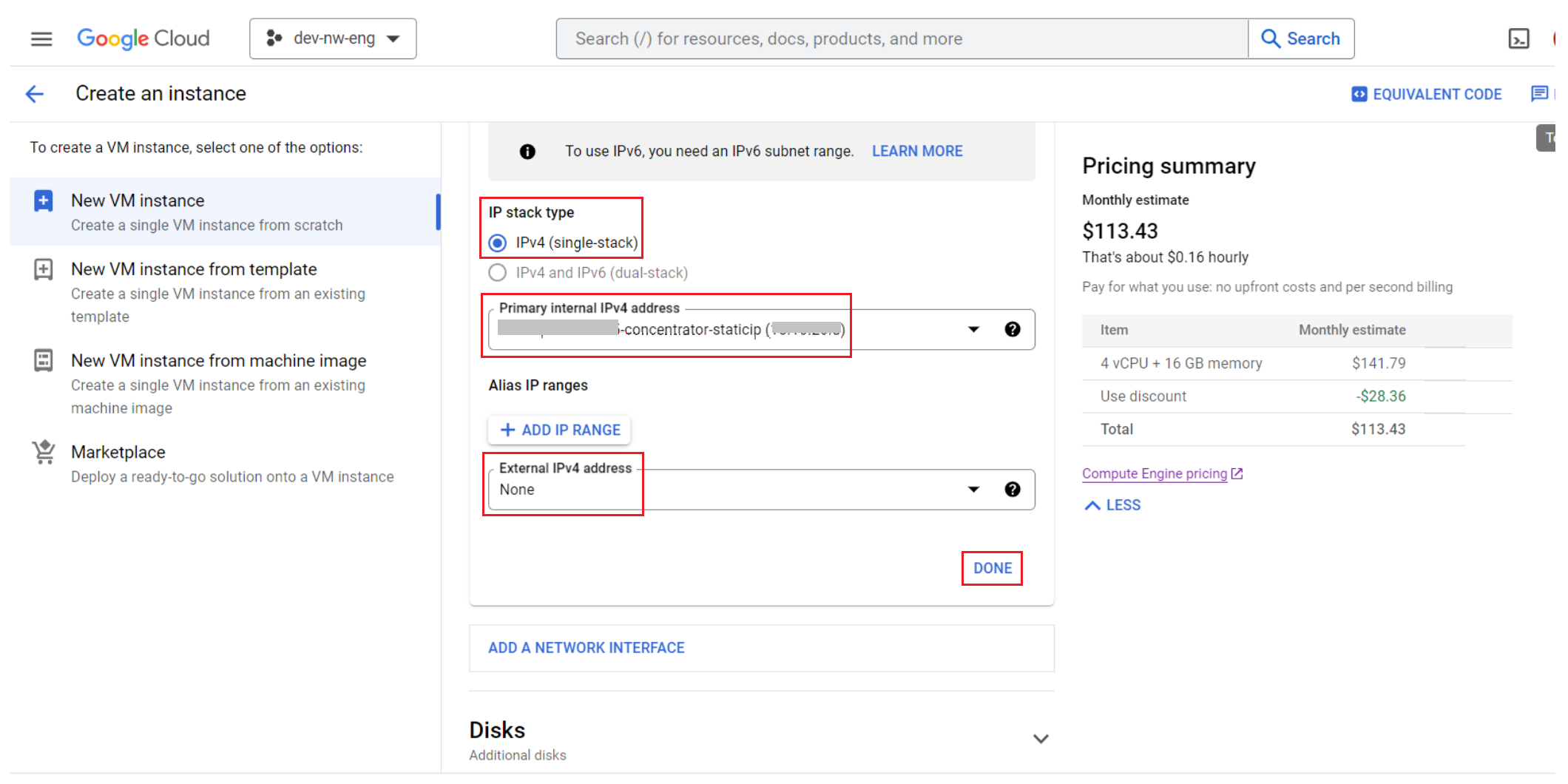

Under Alias IP ranges, select None for the External IPv4 address and click Done.

1251_Select

Step 4. Configure Storage Disks

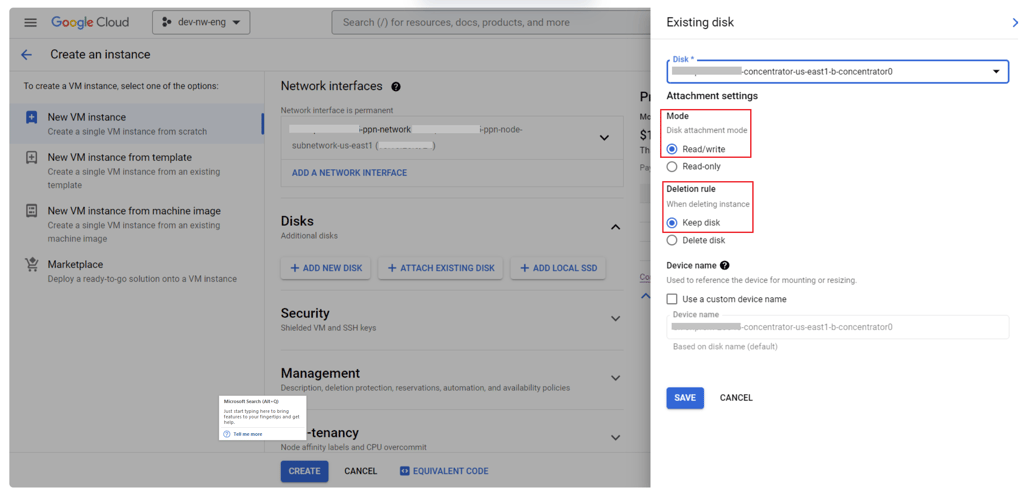

Select Disks > ATTACH EXISTING DISK. Select the appropriate storage disk from the Disk drop-down. Select the Read/Write Mode and Keep disk Deletion Rule and Save. Repeat this (adding Disks) for all the remaining Storage disks for this instance.

1251_Select

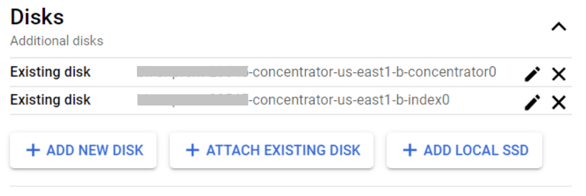

Example: For concentrator service, at least two Storage disks are attached.

1251_Storage

gcloud commands

Click CREATE to complete the VM instance creation from the snapshot.

Equivalent gcloud code to create a new VM instance with Storage disks attached from snapshot:

gcloud compute instances create 20545-concentrator-us-east1-b \

--project=dev-nw-eng \

--zone=us-east1-b \

--machine-type=n2-standard-4 \

--network-interface=private-network-ip=10.10.20.8,stack-type=IPV4_ONLY,subnet=20545-ppn-node-subnetwork-us-east1,no-address \

--maintenance-policy=MIGRATE \

--provisioning-model=STANDARD \

--service-account=97611879986-compute@developer.gserviceaccount.com \

--

scopes=https://www.googleapis.com/auth/devstorage.read_only,https://www.googleapis.com/auth/logging.write,https://www.googleapis.com/auth/monitoring.write,https://www.googleapis.com/auth/servicecontrol,https://www.googleapis.com/auth/service.management.readonly,https://www.googleapis.com/auth/trace.append \

--tags=20545-ssh \

--create-disk=auto-delete=yes,boot=yes,device-name=20545-concentrator-us-east1-b,mode=rw,size=196,source-snapshot=projects/dev-nw-eng/global/snapshots/20545-concentrator-us-east1-b,type=projects/dev-nw-eng/zones/us-east1-b/diskTypes/pd-standard \

--disk=boot=no,device-name=20545-concentrator-us-east1-b-concentrator0,mode=rw,name=20545-concentrator-us-east1-b-concentrator0 \

--disk=boot=no,device-name=20545-concentrator-us-east1-b-index0,mode=rw,name=20545-concentrator-us-east1-b-index0 \

--labels=goog-ec-src=vm_add-gcloud \

--reservation-affinity=any

Terraform

# This code is compatible with Terraform 4.25.0 and versions that are backwards compatible to 4.25.0.

# For information about validating this Terraform code, see https://developer.hashicorp.com/terraform/tutorials/gcp-get-started/google-cloud-platform-build#format-and-validate-the-configuration

resource "google_compute_instance" "20545-concentrator-us-east1-b" {

attached_disk {

device_name = "20545-concentrator-us-east1-b-concentrator0"

mode = "READ_WRITE"

source = "projects/dev-nw-eng/zones/us-east1-b/disks/20545-concentrator-us-east1-b-concentrator0"

}

attached_disk {

device_name = "20545-concentrator-us-east1-b-index0"

mode = "READ_WRITE"

source = "projects/dev-nw-eng/zones/us-east1-b/disks/20545-concentrator-us-east1-b-index0"

}

boot_disk {

auto_delete = true

device_name = "20545-concentrator-us-east1-b"

initialize_params {

size = 196

type = "pd-standard"

}

mode = "READ_WRITE"

}

can_ip_forward = false

deletion_protection = false

enable_display = false

labels = {

goog-ec-src="vm_add-tf"

}

machine_type = "n2-standard-4"

name = "20545-concentrator-us-east1-b"

network_ip = "10.10.20.8"

,,,,,,, courier>subnetwork = "projects/dev-nw-eng/regions/us-east1/subnetworks/20545-ppn-node-subnetwork-us-east1",,,,,,, ,,,,,,, courier>},,,,,,, courier>scheduling {,,,,,,, ,,,,,,, courier>automatic_restart = true,,,,,,, courier>on_host_maintenance = "MIGRATE",,,,,,, courier>preemptible = false,,,,,,, courier>provisioning_model = "STANDARD",,,,,,, ,,,,,,, courier>},,,,,,, courier>service_account {,,,,,,, ,,,,,,, courier>email = "97611879986-compute@developer.gserviceaccount.com",,,,,,, courier>scopes = [" https://www.googleapis.com/auth/devstorage.read_only", " https://www.googleapis.com/auth/logging.write", " https://www.googleapis.com/auth/monitoring.write", " https://www.googleapis.com/auth/service.management.readonly", " https://www.googleapis.com/auth/servicecontrol", " https://www.googleapis.com/auth/trace.append"],, ,,,,,,, courier>},,,,,,, courier>tags = ["20545-ssh"],,,,,,, courier>zone = "us-east1-b",,,,,,, ,,,,,,, courier>},,,,,,, ,,,,,,, ,,,,,,,
