The NetWitness Endpoint Files display shows a negative count in the On Hosts column

Issue

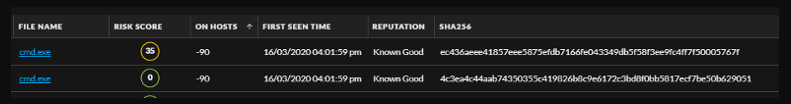

The NetWitness UI, Investigate > Files shows some negative value in the "On Hosts" field.

Cause


It does not make sense to show a file on a negative number of hosts.

There are three possibilities when the Files "On Host" count can decrement.
  1. When the Endpoint agent migrated across multiple Endpoint servers.
  2. Files getting deleted on an Endpoint Agent machine.
  3. Data deletion as part of the data deletion cleanup job.


Workaround

Wait for the Files entries with a negative "On Host" count to be deleted.

By default, in the NetWitness UI, Admin > Services > Endpoint Server, Config, Data Retention Scheduler is configured to delete data older than 30 days.

The Files entries with a negative "On Host" count will be deleted after data retention days is exceeded.

Reference:  https://community.netwitness.com/t5/netwitness-platform-online/data-retention-scheduler-tab/ta-p/669556


Manually delete the mongodb entries for files with a negative "On Host" count.

Note: This does not stop a negative "On Host" count for files appearing again in the future.

1. ssh login to the Endpoint Server appliance

2. Create a backup of the endpoint-server mongodb collection "file" using this command:
mongodump -u deploy_admin -p <deploy_admin password> --authenticationDatabase=admin --port 27017 --db=endpoint-server --collection file --gzip --out=/root/mongodumpgz

For example:
[root@Endpoint ~]# mongodump -u deploy_admin -p netwitness --authenticationDatabase=admin --port 27017 --db=endpoint-server --collection file --gzip --out=/root/mongodumpgz

2020-11-13T03:58:21.712+0000 writing endpoint-server.file to
2020-11-13T03:58:24.475+0000 [#####...................] endpoint-server.file 9811/44533 (22.0%)
2020-11-13T03:58:27.616+0000 [######..................] endpoint-server.file 11147/44533 (25.0%)
2020-11-13T03:58:30.426+0000 [##############..........] endpoint-server.file 26282/44533 (59.0%)
2020-11-13T03:58:33.439+0000 [###############.........] endpoint-server.file 28403/44533 (63.8%)
2020-11-13T03:58:36.441+0000 [################........] endpoint-server.file 30506/44533 (68.5%)
2020-11-13T03:58:39.472+0000 [#################.......] endpoint-server.file 31838/44533 (71.5%)
2020-11-13T03:58:42.428+0000 [##################......] endpoint-server.file 33461/44533 (75.1%)
2020-11-13T03:58:45.550+0000 [####################....] endpoint-server.file 38941/44533 (87.4%)
2020-11-13T03:58:48.427+0000 [#######################.] endpoint-server.file 43000/44533 (96.6%)
2020-11-13T03:58:49.519+0000 [########################] endpoint-server.file 44533/44533 (100.0%)
2020-11-13T03:58:49.520+0000 done dumping endpoint-server.file (44533 documents)



3. Use the below mongodb commands to remove entries with a negative count on the Endpoint Server.
mongo -u deploy_admin -p <deploy_admin password> endpoint-server --authenticationDatabase=admin

db.file.find({hostCount : {$lt : 0}}).count() /* Count how many files have negative hostCount */;
db.file.find({hostCount : {$lt : 0}}) /* Show the file entries with negative hostCount */;
db.file.remove({hostCount : {$lt : 0}}) /* Remove file entries with negative hostCount */;
exit

For example:
[root@Endpoint ~]# mongo -u deploy_admin -p <deploy_admin password> endpoint-server --authenticationDatabase=admin

> db.file.find({hostCount : {$lt : 0}}).count() /* Count how many files have negative hostCount */;
1
> db.file.find({hostCount : {$lt : 0}}) /* Show the file entries with negative hostCount */;
{ "_id" : "48d4fde31b9d7c3024e77387549feb8857e2632babee9e6a4bb03a61ccd4bdd0", "machineOsType" : "windows", "format" : "script", "checksumSha256" : "48d4fde31b9d7c3024e77387549feb8857e2632babee9e6a4bb03a61ccd4bdd0", "checksumSha1" : "c12950ffda47860d94b33eaa7ba8b2453f5d7332", "checksumMd5" : "000016fc005cde39e2c27eddee096467", "entropy" : 0, "size" : 128, "firstFileName" : "[FILELESS_SCRIPT_000016FC005CDE39E2C27EDDEE096467]", "script" : { }, "firstSeenTime" : ISODate("2020-07-27T08:20:37.740Z"), "fileStatus" : "Neutral", "hostCount" : -1, "score" : 0, "reputationStatus" : "Unknown" }
> db.file.remove({hostCount : {$lt : 0}}) /* Remove file entries with negative hostCount */;
WriteResult({ "nRemoved" : 1 })
> exit
bye



4. Refresh the NetWitness UI webpage.

Refresh the NetWitness UI, Investigate > Files, and the entries display shows a negative count in the "On Hosts" column are now removed.

Product Details

RSA Product Set: NetWitness Platform
RSA Product/Service Type: Endpoint Server
RSA Version/Condition: 11.x, 12.x
Platform: CentOS
O/S Version: 7
