Select a Logo Dialog
In the Select a Logo dialog, you can upload a new logo that is not available in Reporting Engine Services Config view or choose an existing logo from the Reporting Engine Services Config view.

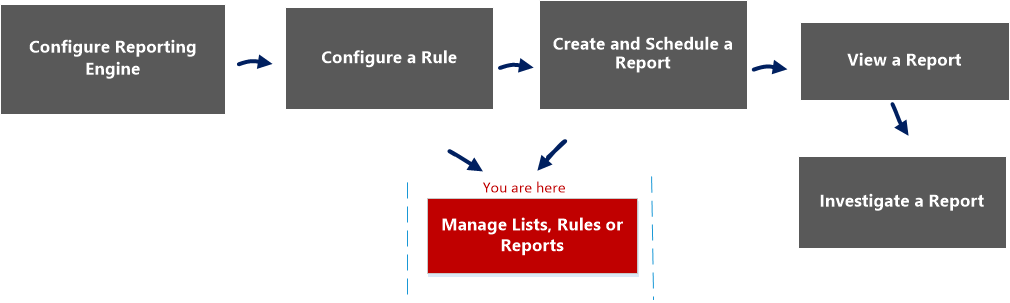

Workflow
This workflow shows the procedure to manage reports or report groups.
What do you want to do?
- Role: Administrator / Analyst
- I want to ...:
Configure Reporting Engine
- Show me how:
For more information, see "Step 3: Configure Reporting Engine Data Sources" topic in the Reporting Engine Configuration Guide
- Role: Administrator / Analyst
- I want to ...: Create a List or List Group/Create or Deploy a Rule/Test a Rule
- Show me how: Configure a Rule
- Role:
Administrator / Analyst
- I want to ...:
Create and Schedule a Report
- Show me how:
- Role: Administrator / Analyst
- I want to ...: View a report or list of all reports
- Show me how: View a Report
- Role: Administrator / Analyst
- I want to ...: Investigate a Report
- Show me how: Investigate a Report
- Role: Administrator / Analyst
- I want to ...: Manage/Access Control for lists, Rules or Reports*
- Show me how: Manage Lists, Rules or Reports
*You can complete these tasks here.
Related Topics
Quick View
To access this dialog:
-
Go to Reports.
The Manage tab is displayed.
-
Click Reports.
The Reports view is displayed.
- In the Reports panel, select a report.
-
Click
> View Scheduled Reports.The View scheduled reports view tab is displayed.
-
Select a scheduled report and click
> Edit Schedule.The Schedule a Report view tab is displayed.
-
Click the Logo panel.

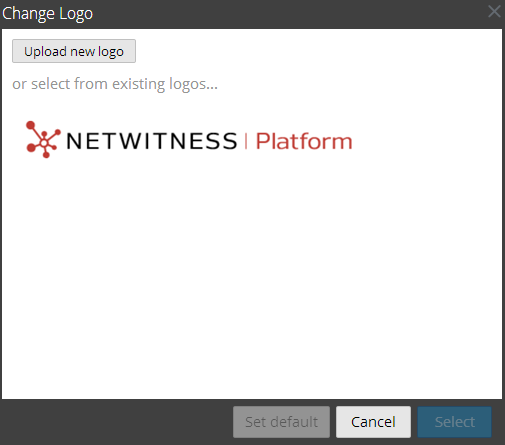

The Change a Logo dialog box is displayed.
The following table lists the fields in the Select a Logo dialog.
- Field: Upload new logo
- Description: Click the icon to upload a new logo from the local directory.
- Field: Select
- Description: Select a logo from the existing list to be used as a logo in the scheduled report.
- Field: Cancel
- Description: Cancels the logo selection and returns to the Schedule a Report panel.
- Field: Set Default
- Description: Select a logo to set it as the default logo.
